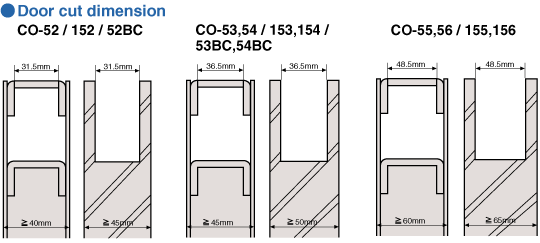

Model Number			Max door dimensions	Max door weight	Door thickness				Body thickness
					Steel door		Wooden door
Without hold open	With hold open	With Back check			Standard install-ation	Top jamb install-ation	Standard install-ation	Top jamb install-ation
CO-52	CO-152	CO-52BC	900 x 2100	45kg	40mm	38mm	45mm	43mm	31mm
CO-53	CO-153	CO-53BC	950 x 2100	65kg	45mm	38mm	50mm	43mm	36mm
CO-54	CO-154	CO-54BC	1050 x 2400	85kg					36mm
CO-55 R	CO-155 R	-	1200 x 2400	120kg	60mm	60mm	65mm	60mm	48mm
CO-55 L	CO-155 L	-							48mm
CO-56 R	CO-156 R	-	1800 x 2700	180kg					48mm
CO-56 L	CO-156 L	-							48mm

Note : Hydlaulic backcheck function is standard function for CO-55 & 56.

APPLICATION (COU-50)

Model Number			Max door dimensions	Max door weight	Door thickness				Body thickness
					Steel door		Wooden door
Without hold open	With hold open	With Back check			Standard install-ation	Top jamb install-ation	Standard install-ation	Top jamb install-ation
COU-52 R	COU-152 R	COU-52BC R	900 x 2100	45kg	36mm	36mm	40mm	40mm	28mm
COU-52 L	COU-152 L	COU-52BC L							28mm
COU-53 R	COU-153 R	COU-53BC R	950 x 2100	65kg					28mm
COU-53 L	COU-153 L	COU-53BC L							28mm
COU-52 HR			900 x 2100	45kg	36mm	36mm	40mm	35mm	28mm
COU-52 HL									28mm
COU-53 HR			950 x 2100	65kg					28mm
COU-53 HL									28mm

CO-50/COU-50 INSTALLATION OPTIONS

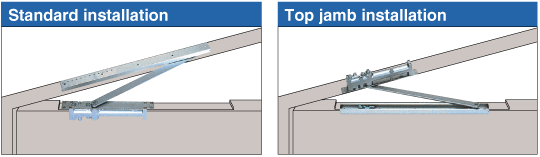

In order to ensure total adaptability to the widest range of applications, the concealed series is available with a choice of either standard or top jamb installations. To further enhance the ranges flexibility, options such as hold open and nonhanding for the CO-50 are also available.

EXCEPTIONAL PERFORMANCE-EXCEPTIONAL VALUE

Ryobi's technology in high quality die-casting and advanced production methods have been combined to produce a highly competitive range of performance closers. In-house tested to 500,000 cycles and incorporating precision rack and pinion mechanisms, the concealed closer range offers outstanding quality and performance at a very realistic price.

FULLY HYDRAULIC CONTROLS

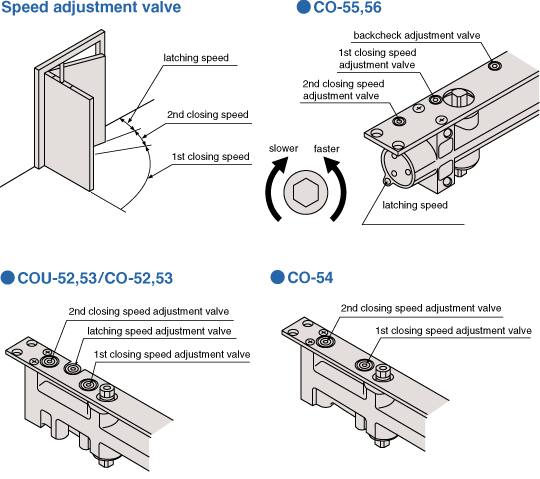

Maximum control over the doors closing speed is provided by the easy to operate hydraulic adjustment, whilst the versatile hydraulic mechanism also allows for 1st and 2nd closing (as illustrated), ensuring a smooth and independent control over the doors movement. The added benefit of a latching speed control is available with the COU-50 series and CO-55,56,whilst for the heavy duty CO-55 and 56 a new,adjustable,hydraulic backcheck function is a significant feature.

NEW MECHANICAL BACKCHECK FUNCTION

Available for all models in the series, the new mechanical backcheck (cushion check) function, features setting and adjustment in the guide rail. The cushioned rubber absorbs the power of the door in the event of it violently swinging open, as in the case of high winds or public misuse.
The backcheck facility reduces the possibility of door damage and is particularly important in public buildings, schools and hospitals where the protection of people and property is paramount.
Note:CO-55,56 have hydraulic backcheck function.
Mechanical backcheck function is not necessary for CO-55,56.

ADJUSTABLE DOOR STOP/HOLD OPEN/BACKCHECK ANGLE & HOLD OPEN FORCE

By the positioning of stopper, stop metal fitting (hold open device), and mechanical backcheck device, the door stop angle, hold open angle and backcheck angle are adjustable as required. Hold open force is also adjustable by the hold open force adjustment nut as shown in the chart.

Adjustment of door stop/hold open/backcheck angle

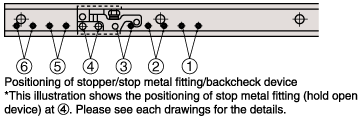

Door stop/Hold open/backcheck angle are adjustable by the posistioning of stopper/stopmetal fitting (hold open device), and mechanical backcheck device at ∼ as shown in illustration.

Adjustment of hold open force
Hold open force is adjustable by the hold open force adjustment nut.
