FEATURES
• Suitable for interior and exterior doors around home width up tp maximum 900mm - utility rooms, garages, bathrooms, kitchen and etc.
• High strength pressure cast aluminum housing.
• Closing and latching speeds adjustable by single valve
• Non handed.
• Including standard arm set and parallel braccket available for both applications
• Easy installation by compact and lightweight body.
• Well-designed attractive package.
STANDARD COLOURS
• Silver, C1 Bronze (Metallic bronze), C2 Bronze (Charcoal Bronze), C5 Gold (Metallic Lemon)
• White, Black and other colours available as option. |

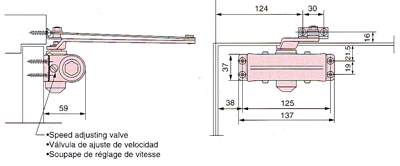

PARALLEL ARM APPLICATION

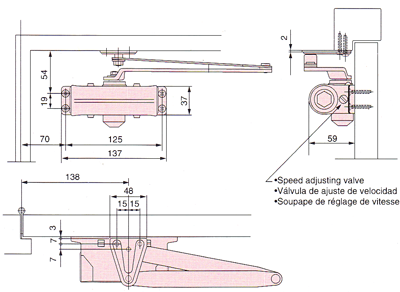

STANDARD APPLICATION
PARALLEL APPLICATION
|
|
