RYOBI 5000 SERIES
|
| Overhead Door Closer |
2 Speed Adjustment
Tested 500,000 Cycles
Up-to 120kgs Capacity Load
Optional Hold Open Function
Mechanical Backcheck
Available in Standard & Parallel Arm
|
| |
|
|
Modern Design Door Closer
• Sized closers for door sizes 1-5, door width up to maximum 1,350mm.
• High strength pressure cast aluminum housing.
• Full rack and pinion mechanism.
• Closing and latching speeds adjustable independently.
• Non handed.
• Suitable for both interior and exterior doors.
• Fire tested in accordance with BS476, part 22: 1987.
• UL Listed
• Mechanical hold open arm available.
• Widest variations in clours and accessories.
• Different arm and bracket for parallel arm application available depending on door and frame dimension.
• Adjustable backcheck functin available.
|

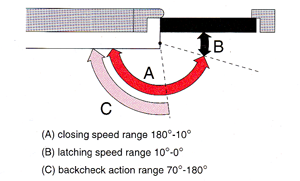

Closing Operation
With ABS plastic cover

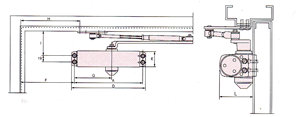

STANDARD APPLICATION
PARALLEL APPLICATION
 |
|
