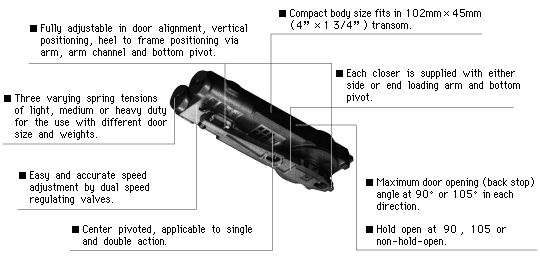

RYOBI 30 SERIES
Concealed Overhead Door Closer

  • OVERHEAD CONCEALED FOR 4" WIDE PROFILE.
  • TWO INDEPENDENT CLOSING SPEED ADJUSTABLE VALVES.
  • LIGHT, MEDIUM, OR HEAVY DUTY, THREE SIZED HOUSINGS.
  • NON-HANDED
  • 105 OR 90 DEGREE HOLD OPEN AVAILABLE.
  • 105 OR 90 DEGREE BACK-STOP SELECTABLE
  • SIDE-LOAD OR END-LOAD ARM

Application
SPRING TENSION LIGHT MEDIUM HEAVY
MAX. DOOR WEIGHT 70 kgs
 110 kgs
 170 kgs
MAX. DOOR WIDTH INTERNAL 950 mm 1,050 mm 1,250 mm
EXTERNAL 750 mm 900 mm 1,050 mm
INSTALLATION HOLD-OPEN MAX. OPENING MODEL NUMBER
SIDE LOAD 105°
 105° 30 - 20S
 30 - 30S
 30 - 40S
   105° 30 - 21S 30 - 31S 30 - 41S
90° 90° 30 - 22S 30 - 32S 30 - 42S
   90° 30 - 23S 30 - 33S 30 - 43S
90° 105° 30 - 24S 30 - 34S 30 - 44S



Specify "S"(for Side-loading installation) or "K" (for End-loading installation) after model number such as
30-20S or 30-33K when ordering.
Each master carton consists of 6 units of complete door closer packed in individual carton.
Opening the door wider than its 105° (90°) capacity will seriously damage the closer body.

THE BEST PERFORMANCE AND QUALITY

Whenever you look for true assurance and value, choose Ryobi. Ryobi is proud of its frontier cast iron
production technology and assures higher performance and quality than what you can expect.
Cast iron housing, high tensile camshaft, and ball bearing bottom pivot are all engineered to ensure
the highest durability of over 1,000,000 cycles and smoother opening and closing operation.

SPEED ADJUSTMENT

CLOSED POSITION ADJUSTING DOOR

PARALLEL POSITION ADJUSTING DOOR
